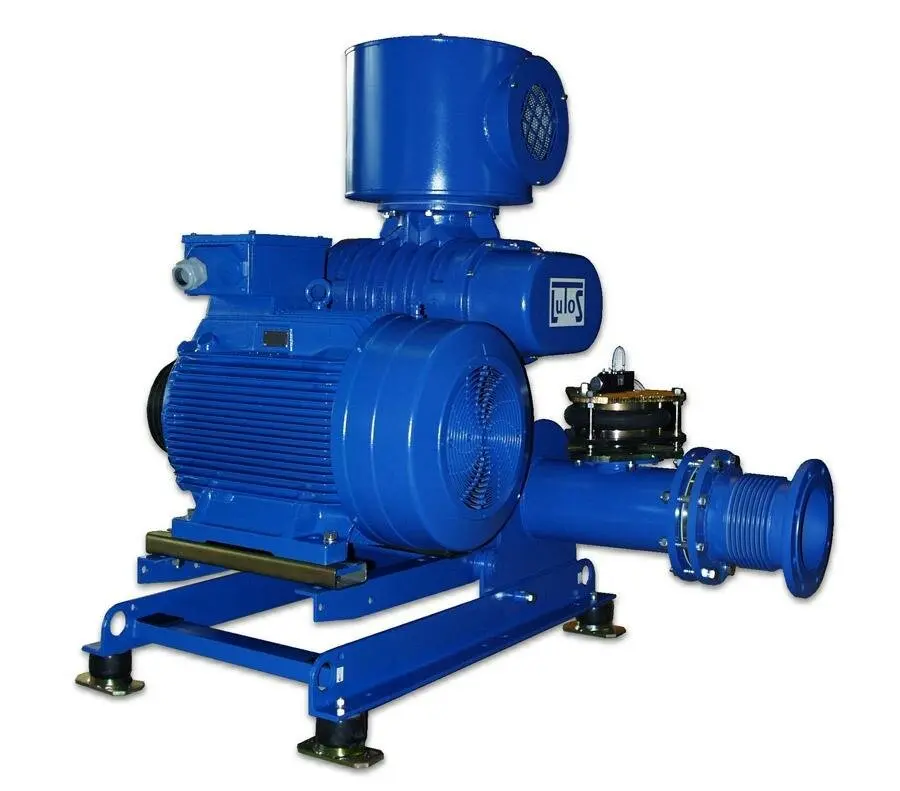

Atlas Copco Lutos DT Blower Package

Ready-to-install blower packages for demanding industrial applications

Immediate reliability, lasting performance, and simplified integration.

Atlas Copco DT (LUTOS) blower packages are complete units integrating a Roots-type positive displacement blower, a suitable motor, transmission, safety devices, and the necessary accessories for quick commissioning.

[SEG SEGMENT 8]
Designed to meet the most common industrial requirements, these standardized packages provide a high-performance, robust, and immediately operational solution for low-pressure air production and process boosting.

The Roots technology used ensures constant flow, continuous operation, and excellent mechanical longevity, with reduced maintenance and controlled operating costs.

DT packages are a particularly relevant solution for industrial users seeking reliable, easy-to-integrate, and readily available equipment.

8 to 10 weeks depending on the version

Variants	Specifications
Standard DT	Complete unit mounted on a skid, ready for connection
K enclosed version	Enhanced acoustic insulation
50 Hz version	European standard
60 Hz version	Export / international
High-pressure version	Depending on selected model
High-flow version	DN 150 to DN 300
Compact version	Small DT4 to DT20 models
Outdoor version	Depending on installation configuration

Key benefits for your processes – Lutos DT Blower Package.

(indicative data, adaptable according to configuration)

Specifications	Lutos DT Blower
Maximum flow rate	up to 8,000 m3/h
Ultimate pressure	up to 1000 mbar(g)
Technology	Roots-type rotary piston positive displacement blower
Application range	Continuous operation for all industries
Construction materials	Cast iron / industrial steel
Inlet connection	From DN32 to DN300
Outlet connection	From DN32 to DN300
Installed motor power	From 1.5 kW to 315 kW
Weight	From 21 kg to 1,910 kg
Power supply	50/60Hz motor - 230/400 V
Acoustic version	K enclosure available depending on model
Standard construction materials - Lutos DI booster unit
Body	High-strength cast iron
Side flanges	Machined cast iron
Tri-lobe rotors	Cast iron
Shafts	High-strength treated steel
Gears	Steel
Gear casing	Cast iron
K acoustic enclosure (optional)	Painted steel sheet with sound insulation

Complete, ready-to-install package for quick commissioning

Proven Roots technology with a high level of industrial reliability
Constant flow and stable performance in continuous operation
Robust construction for demanding environments
Oil-free compression in the compression chamber
Reduced maintenance and simplified access to main components
Wide range available, from low flow to high capacities
Acoustic enclosed versions available depending on models
Excellent longevity of rotors, bearings, and gears
Managed and predictable total cost of ownership
Easy integration into new or existing installations
Ideal solution for industrial low-pressure air production

‍

Request a quote DOWNLOAD THE SHEET

Typical applications – Lutos DT Blower Package.

‍

Lutos DT blower packages are particularly suited for the following sectors and processes:

Wastewater treatment plants and biological tank aeration
Pneumatic conveying of powders, granules, and bulk materials
Cement, lime, and mineral materials industries
Food and beverage industry and dry product conveying processes
Paper and cardboard industry
Plastics processing and raw material handling
Chemical industry and processes requiring low-pressure air
Oxygenation, agitation, and mixing of tanks
Aquaculture and fish farming
Industrial combustion and process air supply
Industrial Utilities
General applications requiring reliable continuous air supply

‍

Why choose GEFI for your Lutos DT Blower Package?

At GEFI, an expert in industrial blowers, Atlas Copco blowers, low-pressure air solutions, industrial vacuum, and process equipment maintenance, we assist industrial clients with the selection, sizing, and supply of high-performance blower packages. Our expertise enables:

The selection of the appropriate Atlas Copco DT blower package for your air flow, pressure, and industrial application. Energy optimization of your industrial blower system.

Integration into existing networks, special machinery, or new processes. Ensuring the reliability of your production equipment in continuous operation.

Maintenance, spare parts, and technical support for your Atlas Copco blowers. Reducing operating costs and unplanned downtime.

Thanks to our technical and operational approach, you benefit from a reliable, durable, and perfectly sized solution for your industrial needs. Atlas Copco DT blower packages, equipped with LUTOS blowers, are an ideal solution for applications such as pneumatic conveying, basin aeration, process air, wastewater treatment plants, bulk material handling, and industrial low-pressure air production. GEFI provides you with a complete solution: consulting, supply, maintenance, and sustainable performance.

Ask for your personalized study

Our experts support you in choosing, integrating and optimizing your industrial vacuum solution.
