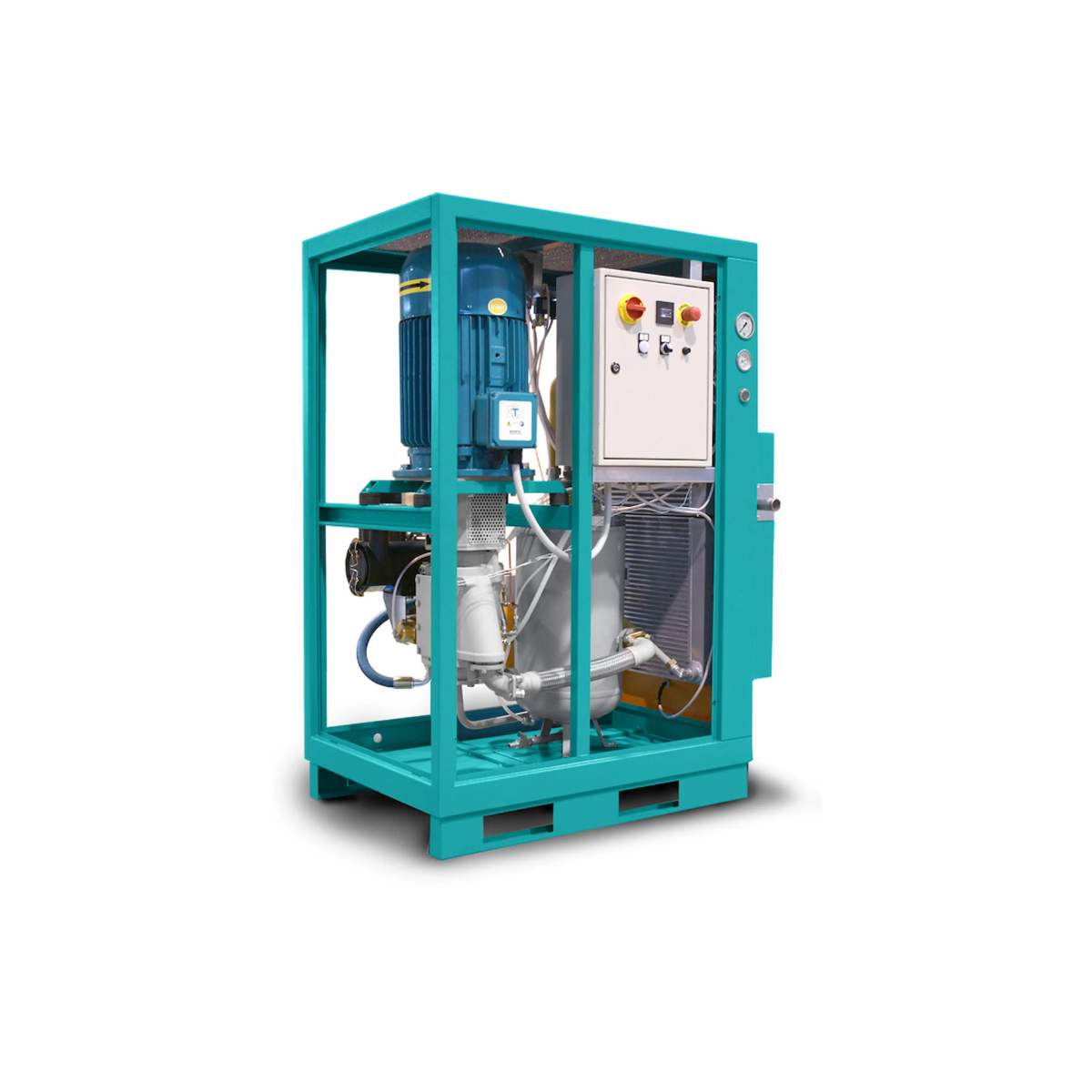

Pneumofore A Series Rotary Vane Compressor

Pneumofore A Series Rotary Vane Compressor: Industrial Performance and Controlled Simplicity

Robust technology for reliable and economical Vacuum

The Pneumofore A Series rotary vane technology is a proven industrial solution, recognized for its long-term reliability, mechanical simplicity, and optimized operating cost.

Designed for continuous 24/7 operation, A Series pumps offer a constant flow over a wide pressure range, an excellent performance stability over time, optimized energy consumption, and reduced maintenance thanks to a limited number of moving parts.

The direct drive design without belts or gears reduces mechanical losses, increases lifespan, and ensures reliable operation for several decades.

Variants	Pneumofore Series A Features
A VS Series	Variable frequency drive for energy optimisation and precise regulation
A HC Series	Hot climate version up to 55°C with enhanced cooling
A HR Series	Combined air + water cooling for heat recovery
A B Series	System with booster as second stage
A W Series	Water cooling for confined environments
A IC Series	Inlet control for operation from atmospheric pressure
A S Series	Specific versions: stainless steel, offshore, PLC, custom dimensions

Key Performance – Pneumofore A Series

(indicative data, adaptable according to configuration)

Specifications	Pneumofore Series A
Maximum flow rate	From 70 m³/h to 5,360 m³/h
Ultimate vacuum	Down to 0.5 mbar abs.
Technology	Oil-lubricated rotary vane vacuum pump
Application range	Continuous operation across all industries
Construction materials	Cast iron (specific options available)
Inlet connection	From DN65 to DN300
Outlet connection	From DN65 to DN300
Installed motor power	From 5.5 kW to 630 kW
Weight	From 380 kg to 10,900 kg
Power supply	50Hz - 230/400 V

Key advantages for your processes – Pneumofore A Series

Technology designed to last

Operation 24/7 in demanding industrial environments
Only two bearings → reduced wear
No mechanical transmission (no belts / gears)
Vanes with active sealing ensuring consistent performance
Lifespan exceeding 120,000 hours

Optimized energy performance

Reduced consumption thanks to patented fluid injection and low rotational speed
Idle power consumption ≈ 18% of installed power‍
Higher-performance alternative to screw or liquid ring technologies

Quick and easy installation

Machines Plug & Play, ready to use
No foundation required
No water connection needed
Small footprint

Environmentally friendly

Closed lubrication circuit
Controlled emissions (< 1 mg/m³ residue)
Low energy consumption
Heat recovery option

Request a quote DOWNLOAD THE SHEET

Typical Applications – Pneumofore A Series

‍

The A Series is particularly suitable for the following sectors and processes:

Food and beverage
Packaging
Material handling
Thermoforming
Plastics processing
Brick production
Extrusion degassing
Polymer production
Aluminum casting
Glass molding
Printing and paper
Bottling

Pneumofore Series A Rotary Vane Compressor

Why choose GEFI to supply your Pneumofore Series A?

At GEFI, specialists in vacuum and overpressure solutions, our support extends far beyond just supplying equipment:

Analysis of your process needs. Precise sizing.

Energy optimization. Integration into your system.

Long-term support.

The Series A represents a sustainable, reliable, and economically optimized industrial solution.

Ask for your personalized study

Our experts support you in choosing, integrating and optimizing your industrial vacuum solution.

Pneumofore Series A Rotary Vane Compressor
